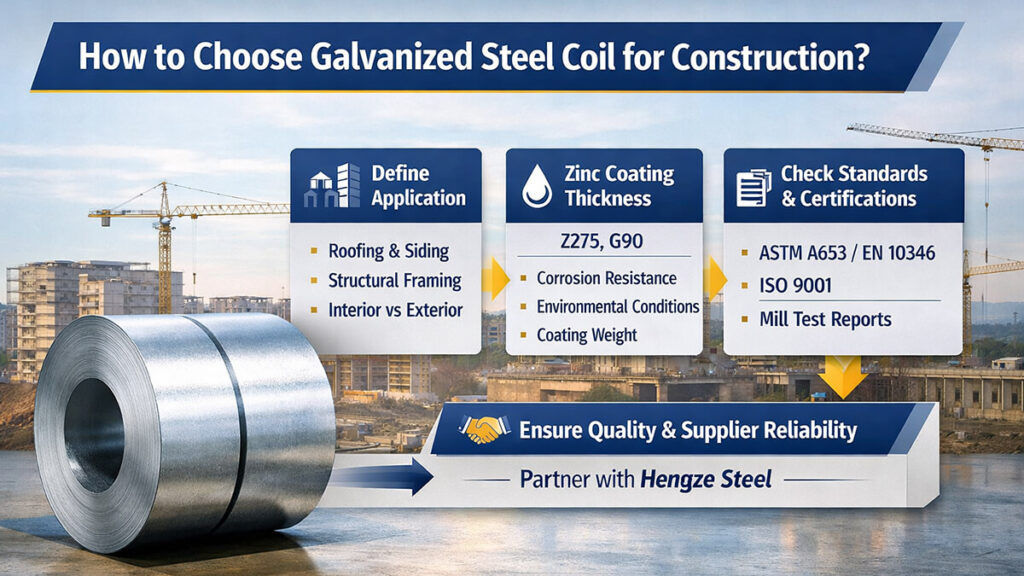

How to Choose Galvanized Steel Coil for Construction
Galvanized steel coil is one of the most widely used materials in the global construction industry due to its excellent balance of corrosion resistance, mechanical strength, service life, and cost efficiency. By applying a protective zinc coating to carbon steel, galvanized steel effectively prevents rust and degradation when exposed to outdoor environments.
For residential, commercial, and industrial buildings, galvanized steel coils are essential materials for roofing systems, wall cladding, structural framing, and auxiliary components. Professional manufacturers such as Hengze Steel supply construction-grade galvanized coils engineered to meet international standards and long-term performance expectations.
Table of Contents
- 1. Core Performance Requirements for Construction Applications1. Core Performance Requirements for Construction Applications
- 2. Main Types of Galvanized Steel Coils Used in Construction2. Main Types of Galvanized Steel Coils Used in Construction
- 3. Zinc Coating Weight: The Key Factor for Durability3. Zinc Coating Weight: The Key Factor for Durability
- 4.Selecting the Right Steel Grade for Structural Performance4.Selecting the Right Steel Grade for Structural Performance
- 5. Thickness, Width, and Dimensional Tolerance Control Thickness Selection5. Thickness, Width, and Dimensional Tolerance Control Thickness Selection
- 6. Surface Quality, Formability, and Processing Performance6. Surface Quality, Formability, and Processing Performance
- 7. Environmental Exposure and Corrosion Resistance Levels7. Environmental Exposure and Corrosion Resistance Levels
- 8. International Standards, Certifications, and Quality Control8. International Standards, Certifications, and Quality Control
- 9. Typical Construction Applications9. Typical Construction Applications
- 10. Professional Purchasing Tips for Galvanized Steel Coils10. Professional Purchasing Tips for Galvanized Steel Coils
- 11. Final Selection Checklist11. Final Selection Checklist
- 12. Conclusion12. Conclusion
1. Core Performance Requirements for Construction Applications
Unlike short-cycle industrial products, construction materials must perform reliably over decades. When selecting galvanized steel coil for construction, the following requirements are critical:
Long-term corrosion protection in outdoor environments
Stable mechanical strength under static and dynamic loads
Compatibility with forming, cutting, welding, and fastening
Compliance with regional building codes and standards
Consistent quality across large-volume projects
Failure to meet these requirements may result in premature corrosion, structural instability, or costly maintenance.

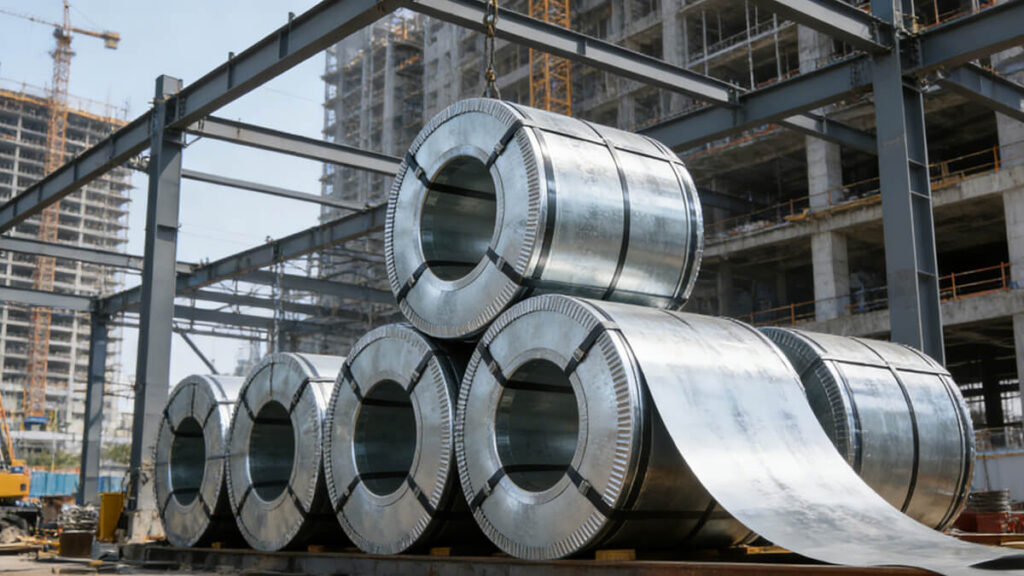

2. Main Types of Galvanized Steel Coils Used in Construction
- Thick and uniform zinc coating
- Excellent corrosion resistance
- Strong coating adhesion
- Ideal for outdoor and structural use
2.2 Electro-Galvanized Steel Coil (EG)
Electro-galvanized steel coil is coated through an electrochemical process, resulting in a smoother surface but thinner zinc layer.
Characteristics:
Smooth and bright appearance
Limited corrosion resistance
Mainly suitable for indoor or decorative components
This type is generally not recommended for exterior construction applications.
Pre-painted galvanized steel coil combines galvanization with organic coating systems.
Key benefits:
Enhanced corrosion protection
Improved weather resistance
Wide color and finish options
PPGI is widely used for roofing sheets, wall panels, and architectural facades where both performance and appearance are required.
3. Zinc Coating Weight: The Key Factor for Durability
Zinc coating weight directly determines the corrosion resistance and service life of galvanized steel.
Common zinc coating designations include:
Z60 / Z80 – Light indoor applications
Z120 / Z180 – Standard construction environments
Z275 (G90) – Heavy-duty outdoor and industrial exposure
As a general principle, harsher environments require heavier zinc coatings. In coastal, high-humidity, or industrial areas, Z275 or higher is strongly recommended.
4. Selecting the Right Steel Grade for Structural Performance
The base steel grade defines the mechanical properties of galvanized steel coil, including yield strength, tensile strength, and elongation.
Common grades for construction:
S350GD+Z – Load-bearing and light steel framing systems
Professional suppliers such as Hengze Steel offer a full range of construction-grade steel options to match different structural and fabrication requirements.
5. Thickness, Width, and Dimensional Tolerance Control
Thickness Selection
- Roofing and cladding: 0.30–0.80 mm
- Structural framing and supports: 0.90–3.00 mm
Width Range
Typically between 600 mm and 1250 mm, depending on roll-forming equipment and project needs.
Dimensional Tolerances
Precise thickness and width control ensures:
Consistent forming performance
Accurate installation
Reduced material waste
6. Surface Quality, Formability, and Processing Performance
Surface condition plays a crucial role in downstream processing and final product appearance.
Key considerations include:
Spangle size and uniformity
Surface roughness for paint adhesion
Passivation or oiling to prevent white rust
For bending, profiling, and roll-forming processes, galvanized coils must maintain uniform coating and stable elongation performance.
7. Environmental Exposure and Corrosion Resistance Levels
Environmental conditions significantly influence material selection.
Typical exposure categories include:
Dry indoor environments
Urban outdoor environments
Industrial or chemical exposure zones
Coastal and marine climates
Matching zinc coating weight to environmental severity is essential to achieve the expected service life of the structure.
8. International Standards, Certifications, and Quality Control
To ensure quality and compliance, galvanized steel coils should conform to recognized international standards:
ASTM A653 / A653M
EN 10346
JIS G3302
ISO 9001 Quality Management System
Buyers should request mill test certificates, zinc coating reports, mechanical property data, and third-party inspection documents when necessary.
9. Typical Construction Applications
Galvanized steel coils are widely applied in:
Roofing and wall cladding systems
Light steel framing and structural components
Purlins, beams, and supports
Fencing, guardrails, and barriers
Drainage and accessory systems
Their versatility makes them a core material in modern construction projects.
10. Professional Purchasing Tips for Galvanized Steel Coils
To avoid quality and cost issues, professional buyers should:
Compare products based on full specifications, not price alone
Confirm zinc coating weight and steel grade clearly
Verify compliance with destination market standards
Evaluate supplier manufacturing and export experience
Reliable manufacturers such as Hengze Steel emphasize consistent quality, traceability, and international project support.
11. Final Selection Checklist
Before confirming your order, ensure the following points are clearly defined:
Application type (structural or non-structural)
Environmental exposure level
Zinc coating weight
Steel grade and thickness
Applicable standards and certifications
12. Conclusion
Selecting the right galvanized steel coil for construction requires a systematic evaluation of corrosion resistance, mechanical performance, environmental exposure, and regulatory compliance. A well-chosen product delivers extended service life, reduced maintenance costs, and improved structural reliability.
By working with experienced manufacturers like Hengze Steel, builders, contractors, and importers can ensure stable quality, technical support, and long-term value for construction projects worldwide.
